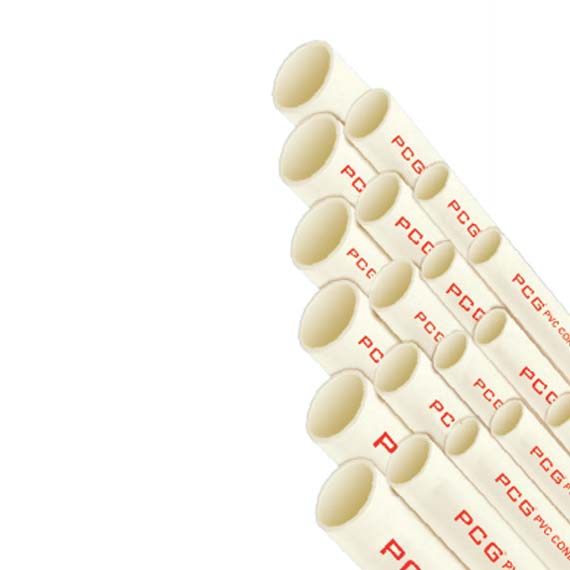

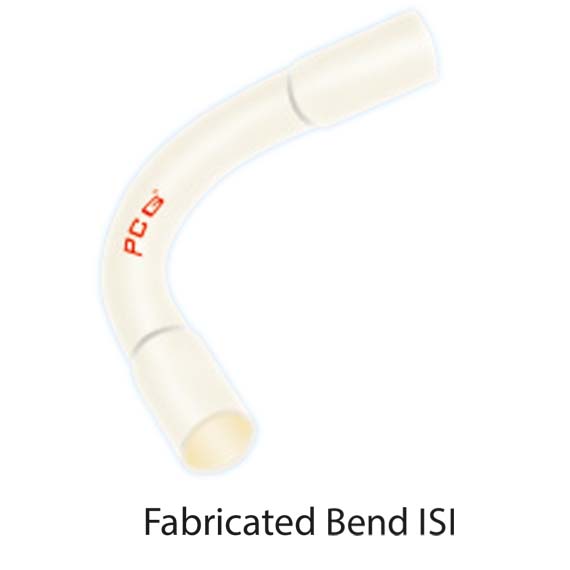

We would like to introduce ourselves as one of the leading manufacturers of uPVC rigid conduit pipe, Casing-N-Caping and PVC accessories in the country under the brand name PCG for electrical purposes.
Pipe Sizes available 20, 25, 32, 40, & 50 mm
Casing & capping also available 20, 25,32,38 & 50mm

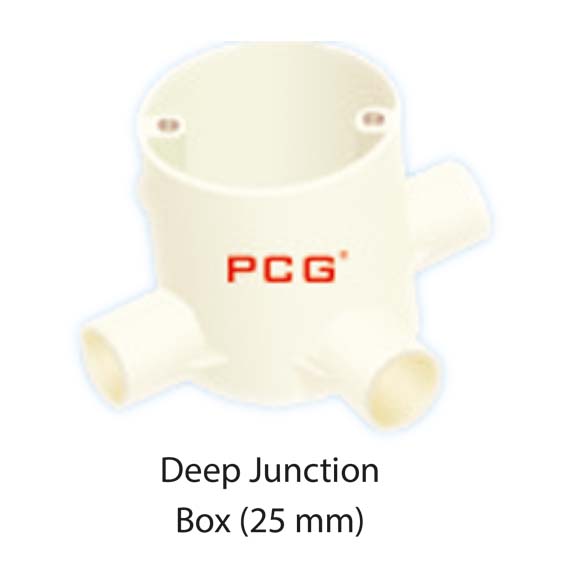

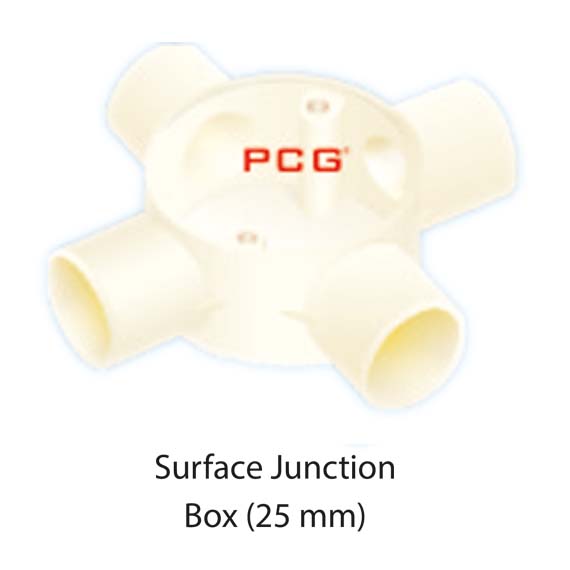

Surface & deep junction box in one way, two way, three way & four way configuration
All junction boxes are provided with brass inserts with covers
DIMENSION | ||||||
---|---|---|---|---|---|---|
Minimum Internal Diameter | ||||||
Nominal Size (in mm) | Maximum O.D. (in mm) | Minimum O.D. (in mm) | Light Mechanical Stress (in mm) | Medium Mechanical Stress (in mm) | Heavy Mechanical Stress (in mm) | Packing/bundle (in meters) |
20 | 20 | 19.70 | 17.40 | 16.90 | 15.80 | 120 |
25 | 25 | 24.60 | 22.10 | 21.40 | 20.60 | 75 |
32 | 32 | 31.60 | 28.60 | 27.80 | 26.60 | 60 |
40 | 40 | 39.60 | 35.80 | 35.40 | 34.40 | 45 |
50 | 50 | 49.50 | 45.10 | 44.30 | 43.20 | 30 |
Color Varient:
Contact us today for free conslutaion or more information.
